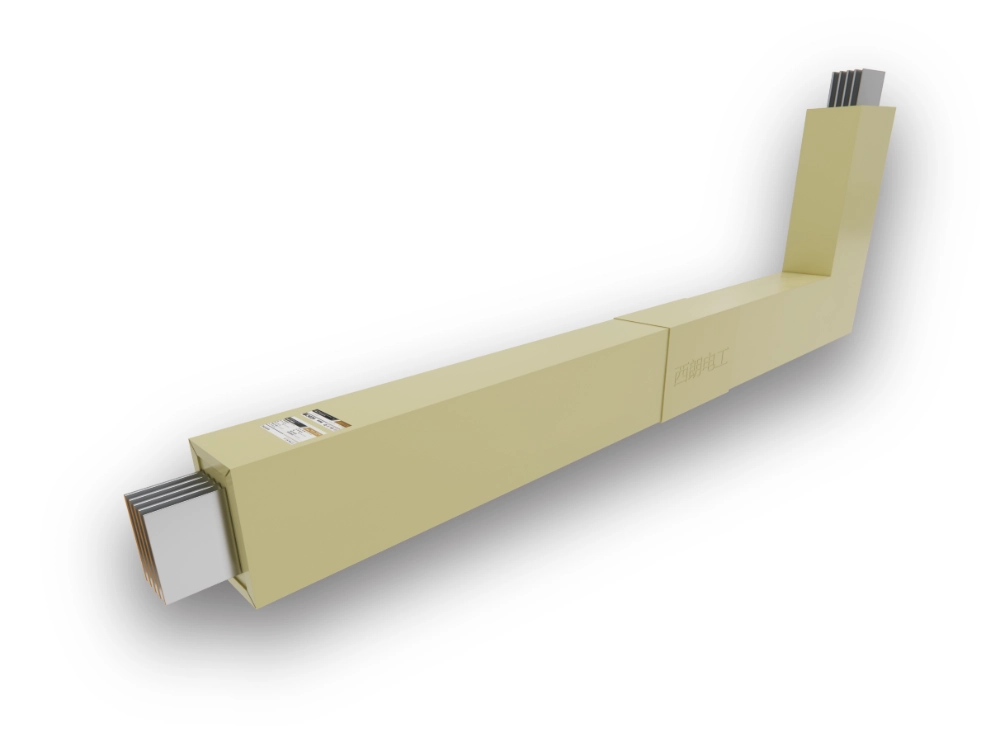

    CY-C Cast-Resin Busway: Unparalleled Safety & Durability

    The CY-C Series Cast-resin busway is engineered with an integrated epoxy resin casting process, delivering outstanding electrical performance and mechanical strength. The cured epoxy resin provides exceptional wear and impact resistance, dimensional stability, high insulation strength, arc resistance, and anti-creep performance, ensuring reliable operation over the long term. Its innovative structural design significantly enhances heat dissipation, effectively reducing temperature rise even under high loads or demanding conditions, thereby extending equipment lifespan. With a robust, fully enclosed construction, the busway achieves high protection levels, making it suitable for challenging environments.

    Protection Rating: Up to 30 years
    Service Life:  IP54, IP65, IP66
    Conductive Materials:  99.95% Copper
    Custom Busway Solution:  Support

    SEND INQUIRY

    PRODUCT FEATURES

    • Superior Electrical Performance

      Our cured epoxy resin ensures excellent electrical reliability, resisting wear, impact, and deformation. It delivers stable conductivity and prevents power loss, making it ideal for industrial and commercial power distribution.

    • Exceptional Mechanical Strength

      With high dielectric strength, superior arc resistance, and robust tracking resistance, the epoxy resin safeguards your busway system against mechanical stress and electrical faults, ensuring long-term safe operation.

    26

    Industry Experience

    • Advanced Heat Dissipation

      Engineered with a unique structural design, our busway system rapidly disperses heat, reducing thermal buildup and maintaining optimal performance even under high-current loads.

    • Long-Term Reliability and Safety

      Built with premium materials and precision manufacturing, this system resists environmental stress, prevents insulation aging, and guarantees consistent, low-maintenance operation over its service life.

    PRODUCT SPECTIFICATIONS

    • Parameters
    • Product Specification

    Executive standards



    GB/T251.6 - 2015、IEC61439 - 6:2012

    Material



    Cu + Ag ≥ 99.97%

    housing



    Mineral synthetic resin

    unit length



    Optional between 0.5 - 0.6 meters

    protection grade



    IP68

    rated insulation voltage

    V

    1000

    rated operational voltage

    V

    1000

    Rated frequency

    Hz

    50

    Wire system



    optional:3P、4P、5P、200%N

    Rated current

    A

    400、500、630、800、1000、1250、1600、2000、2500、3200、4000

    Resistance(R20)

    mΩ/m

    0.132、0.112、0.097、0.076、0.050、0.037、0.031、0.023、0.018、0.014、0.012

    Reactance(X20)

    mΩ/m

    0.395、0.036、0.066、0.060、0.055、0.043、0.036、0.032、0.025、0.019、0.013

    Impedance(Z20)

    mΩ/m

    0.138、0.118、0.130、0.092、0.073、0.057、0.046、0.035、0.032、0.021、0.018

    Voltage drop(cos=0.9)

    V/m

    0.094、0.097、0.110、0.101、0.102、0.102、0.105、0.105、0.107、0.112、0.121

    Rated short - time withstand current

    kA

    30、80

    Rated peak withstand current

    kA

    63、176

    withstand voltage

    kV

    8

    Electrical clearance

    mm

    ≥10

    Creepage Distance

    Mm

    ≥16

    Insulation resistance

    MΩ

    ≥20

    Dielectric properties



    4KV/5s No breakdown or flashover

    Temperature rise

    K

    ≤70 (Place for each conductive connection) 、≤55 (outermost shell)

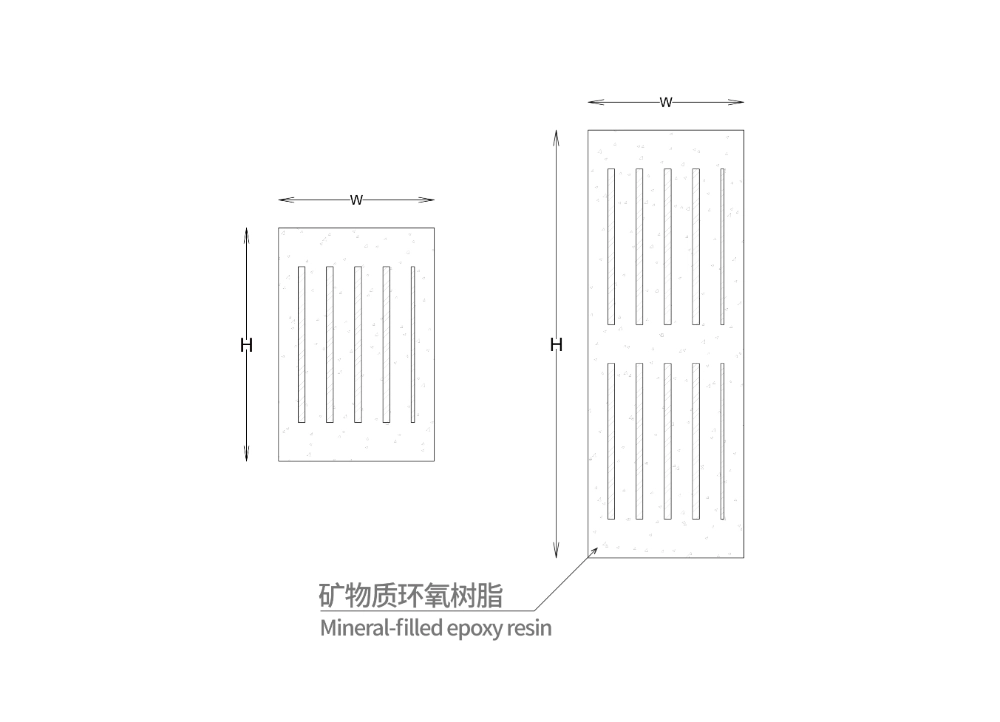

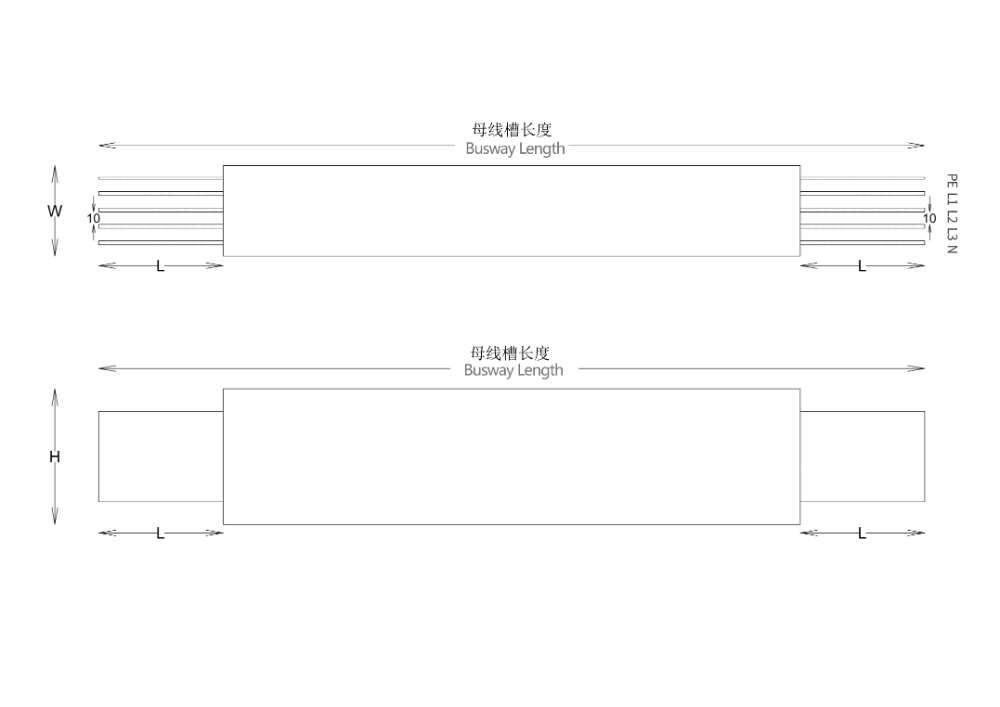

    CURRENT LEVEL(A) MODEL   SK-LINE-FS
    OVERALL DIMENSIONS W(mm) H(mm)
    400 90 65
    500 90 65
    630 90 75
    800 90 85
    1000 90 100
    1250 90 115
    1600 90 150
    2000 90 180
    2500 90 220
    3200 90 300
    4000 90 375

    PRODUCT APPLICATION

    • Industrial Manufacturing
      Our busway solutions provide efficient and reliable power support for large industrial plants, ensuring uninterrupted operation of heavy machinery and production lines 24/7.
    • Medical & Educational Facilities
      Our busways ensure safe and reliable power distribution in critical facilities like hospitals and schools, supporting the stable operation of essential equipment.
    • Data Centers
      Our busways offer efficient power solutions for data centers, meeting high load demands and ensuring the efficiency and stability of data transmission and processing.
    • Commercial Buildings
      Our busways offer flexible power distribution in commercial buildings, meeting the needs of various office spaces and equipment, ensuring efficient and safe power supply.
    • Super High-Rise Buildings
      Our busways provide reliable power supply for super high-rise buildings, supporting multiple power needs across different floors and ensuring stable power transmission.
    • Transportation Infrastructure
      Our busways offer efficient power distribution solutions for transportation infrastructure, ensuring the stable operation of facilities like airports and subways.

    Why Choose Cylon Busway

    • Lightweight Aluminium, High Conductivity

      Crafted with premium-grade aluminium conductors and treated with a full-length tin-plated finish, the system achieves reliable current transmission while maintaining excellent conductivity. The lightweight aluminium design reduces overall installation load, provides strong resistance to oxidation, and ensures long-term durability with lower energy loss.

    • Outstanding Insulation Reliability

      Insulated with DuPont polyester film (Class B, 130 °C) and reinforced with black adhesive insulation at the terminals (Class F, 155 °C), the busway ensures superior electrical protection. These halogen-free, eco-friendly materials deliver safer, more dependable performance in demanding applications.

    • Sealed Structure for Maximum Protection

      Side panels are integrally fabricated and tightly sealed, creating a fully enclosed enclosure. This robust design effectively blocks out dust and moisture, achieving IP65 protection, while overcoming the vulnerabilities of conventional jointed assemblies.
