    CY-L Aluminium Sandwich Busway System

    The  CY-L series is engineered for reliable and efficient power distribution. With DuPont polyester film insulation (Class B, 130℃) and reinforced Class F epoxy resin terminals, it ensures excellent thermal endurance and mechanical stability. The flame-retardant, halogen-free design meets UL94 standards, delivering eco-friendly safety. Its fully sealed housing achieves IP66 protection, keeping out dust and moisture, while the unique sandwich-type conductor structure enhances heat dissipation for long-lasting, high-performance operation in demanding environments.

    Protection Rating: Up to 30 years
    Service Life:  IP54, IP65, IP66
    Conductive Materials:  Aluminium
    Custom Busway Solution:  Support

    SEND INQUIRY

    PRODUCT FEATURES

    • “Sandwiched” Structure

      The compact conductor arrangement with integrated heat dissipation results in lower temperature rise of the busway; The tightly structured busway occupies less building space;

    • Interface and plug-in box

      The tap-off interfaces can be arranged in single-sided or double-sided configurations,with their quantity and spacing flexibly adjustable on-site; The independently developed plug-in box features excellent overload protection,short-circuit protection,and integrated ground fault protection;

    26

    Industry Experience

    • Universal parts and accessories

      The CY-L series aluminum busway features an optimized design,enablinginterchangeability of accessories and tminonents across busway systems with the same curent Plug-in boxes and tap-off interfaces are mutually compatiblesimplifying installation and maintenance efforts while effectively reducing customer costs.

    • Active Connector

      Allows quick disassembly during maintenance and creates electrical isolation for safe servicing; Incorporates precision alignment features to enhance installation efficiency and ensure assembly accuracy; Utilizes silver/tin-plated contact surfaces with double-sided overlapping joints to expand effective conductor cross-section, guaranteeing low-resistance electrical performance;

    PRODUCT SPECTIFICATIONS

    • Parameters
    • Copper Size Chart
    Execution Standards   IEC60439.1-1999, IEC60439.2-2000, GB7251.1-2005, GB7251.2-2006, GB7251.6-2015
    Conductor Material   Re+Mn+Mg+Cr
    Housing   6063-T5 Aluminum-Magnesium Alloy
    Unit Length   1.6, 3, 6 (any length between 0.5 and 6 meters)
    Ingress Protection (IP) Rating   IP54, IP65
    Rated Insulation Voltage   1000
    Rated Working Voltage   AC400/1000
    Rated Frequency Hz 50-50
    Rated Current   400 500 630 800 1000 1250 1600 2000 2500 3200 4000
    Resistance X10-0/m 104.9 104.9 93.6 80.6 68.6 57.9 52.4 46.4 37.4 26.7 1
    Reactance (R20) x10-0/m 62.3 623 56.1 49.2 42.6 34.9 28.1 22.2 14.2 55 4.7
    Impedance (Z20) x10-0/m 83.8 83.8 76 69.4 65.4 62.1 46.7 38.3 29.8 24.3 15.8
    Voltage Drop (at cosφ=0.9) V/m 0.153 0.153 0.152 0.147 0.146 0.143 0.134 0.132 0.127 0.124 0.122
    Rated Short-time Withstand Current (t=1s) KA 30
    Rated Peak Withstand Current KA 63 143
    Clearance mm ≥8
    Creepage Distance mm ≥12.5
    Insulation Resistance MΩ ≥20
    Grounding Resistance   ≤0.01
    Dielectric Performance   50Hz, 2.5KV/1min without breakdown or flashover
    Temperature Rise   ≤55≤70
    Tap-off Unit Quantity   Minimum 0.8 meters per unit
    Maximum Fixing Spacing   2
    Installation Method kg 15 25 35 50
    Execution Standards   Vertical or horizontal

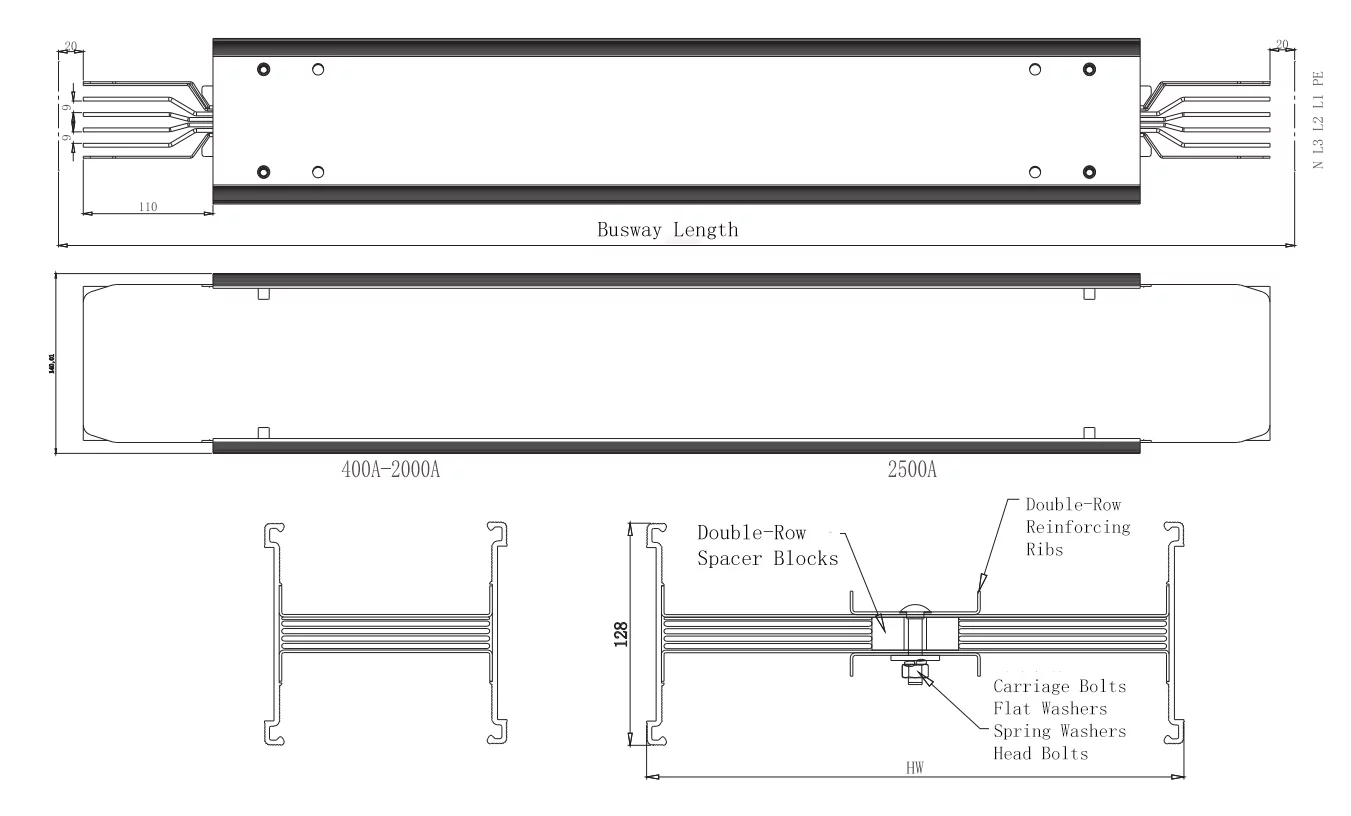

    Current Rating (A) Model CY-L (Aluminium)
    Dimensions Width (mm) Height (mm)
    250-400 128 60
    500 128 70
    630 128 80
    800 128 105
    1000 128 130
    1250 128 160
    1600 128 200
    2000 128 240
    2500 128 300
    3150 128 390
    4000 128 460
    5000 128 60
    6300 128 70

    PRODUCT APPLICATION

    • Industrial Manufacturing
      Our busway solutions provide efficient and reliable power support for large industrial plants, ensuring uninterrupted operation of heavy machinery and production lines 24/7.
    • Medical & Educational Facilities
      Our busways ensure safe and reliable power distribution in critical facilities like hospitals and schools, supporting the stable operation of essential equipment.
    • Data Centers
      Our busways offer efficient power solutions for data centers, meeting high load demands and ensuring the efficiency and stability of data transmission and processing.
    • Commercial Buildings
      Our busways offer flexible power distribution in commercial buildings, meeting the needs of various office spaces and equipment, ensuring efficient and safe power supply.
    • Super High-Rise Buildings
      Our busways provide reliable power supply for super high-rise buildings, supporting multiple power needs across different floors and ensuring stable power transmission.
    • Transportation Infrastructure
      Our busways offer efficient power distribution solutions for transportation infrastructure, ensuring the stable operation of facilities like airports and subways.

    Why Choose Cylon Busway

    • Lightweight Aluminium, High Conductivity

      Crafted with premium-grade aluminium conductors and treated with a full-length tin-plated finish, the system achieves reliable current transmission while maintaining excellent conductivity. The lightweight aluminium design reduces overall installation load, provides strong resistance to oxidation, and ensures long-term durability with lower energy loss.

    • Outstanding Insulation Reliability

      Insulated with DuPont polyester film (Class B, 130 °C) and reinforced with black adhesive insulation at the terminals (Class F, 155 °C), the busway ensures superior electrical protection. These halogen-free, eco-friendly materials deliver safer, more dependable performance in demanding applications.

    • Sealed Structure for Maximum Protection

      Side panels are integrally fabricated and tightly sealed, creating a fully enclosed enclosure. This robust design effectively blocks out dust and moisture, achieving IP65 protection, while overcoming the vulnerabilities of conventional jointed assemblies.
