CY-L Copper Dense Busway System

High-quality conductor and excellent insulation materials High performance,High strength and IP65+protection level

Improved safety performance

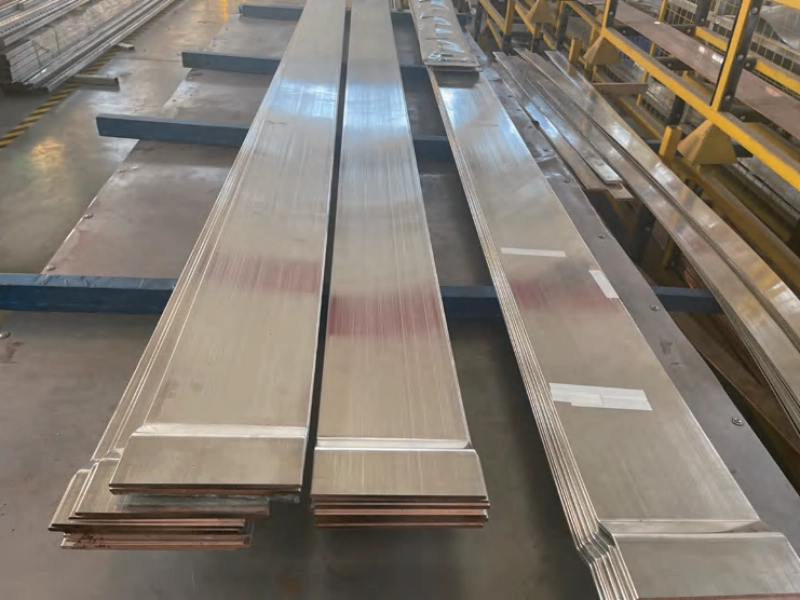

The CY-L series busway utilizes high-quality conductors and insulating materials with an optimized structural design providing low line losses to significantly enhance transmis- sion efficiency and reduce costs; The busway's superior heat dissipation performance and stable temperature rise levels ensure long-term operational stability;
Excellent insulation performance

Utilizes DuPont polyester film as the primary insulatior material, rated for Class B (130°C) thermal endurance; Terminal sections reinforced with Class F (155°C) black epoxy resin for superior mechanical fixaition and insulation reinforcement； Flame-retardlant performance meets UL94 standards, ensuring halogen-free and eco-friendly insulation properties;
Enhanced protectioncapability

The grounding system employs an advanced integrated grounding method (IGB structure)with 50%phase line capacity,ensuring ground line integrity and continuity; During high-capacity ground faults,the effective grounding mechanism safeguards the entire system while minimizing eddy current losses; The busway housing adopts Dacromet rivets assembled with minimal spacing,delivering superior short-time withstand performance,enhanced safety,and eliminating electric shock risks;

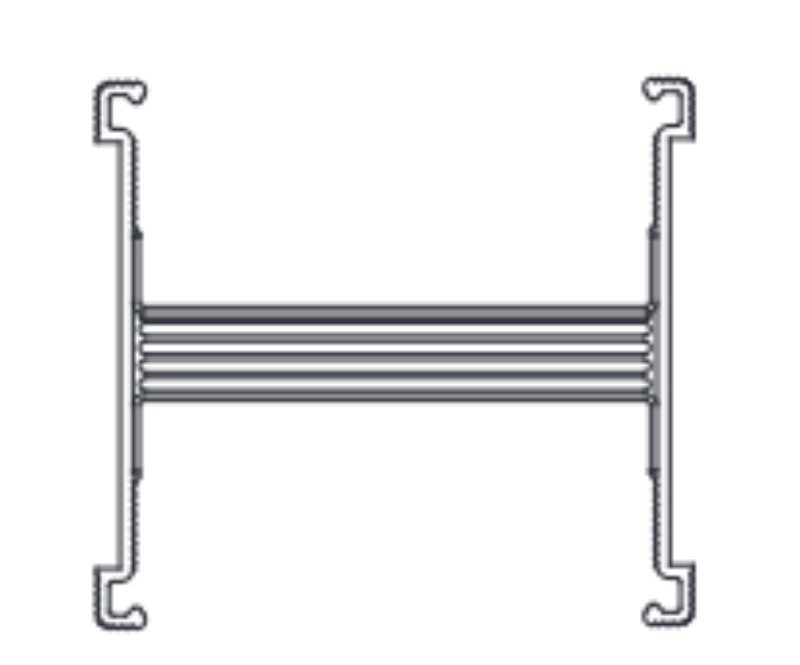

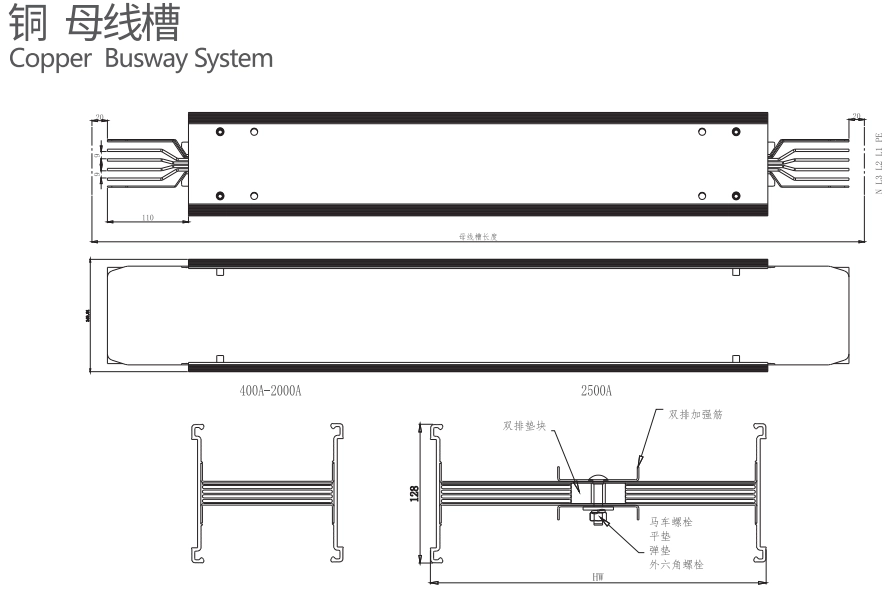

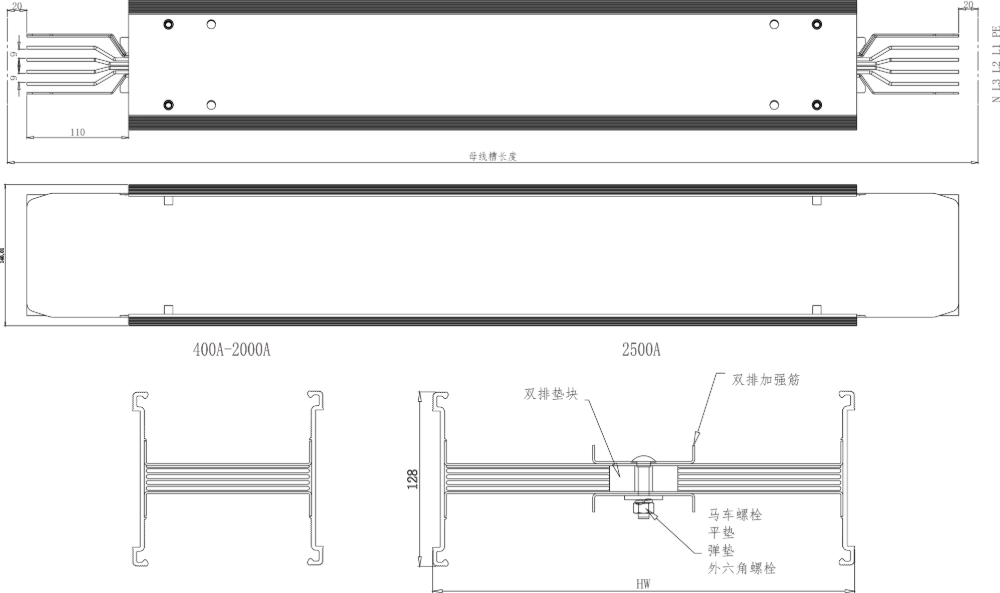

"Sandwich"/"亚”structure

The compact conductor arrangement with integrated heat dissipation results in lower temperature rise of the busway; The tightly structured busway occupies less building space;
Active connector

Allows quick disassembly during maintenance and creates electrical isolation for safe servicing; Incorporates precision alignment features to enhance installation efficiency and ensure assembly accuracy; Utilizes silver/tin-plated contact surfaces with double-sided overlapping joints to expand effective conductor cross-sec- tion,guaranteeing ow-resistance electrical performance;
Higher transmission efficiency and lower

The CY-L series housing adopts a fully enclosed structure formed by integrated molding technology,reducing dust accumulation inside the busway and applying electrostatic spray polyester powder; It addresses the weak protection issue at joints of full-aluminum-profile housing busways,achieving an IP66 protection rating for the entire busway with excellent corrosion resistance.

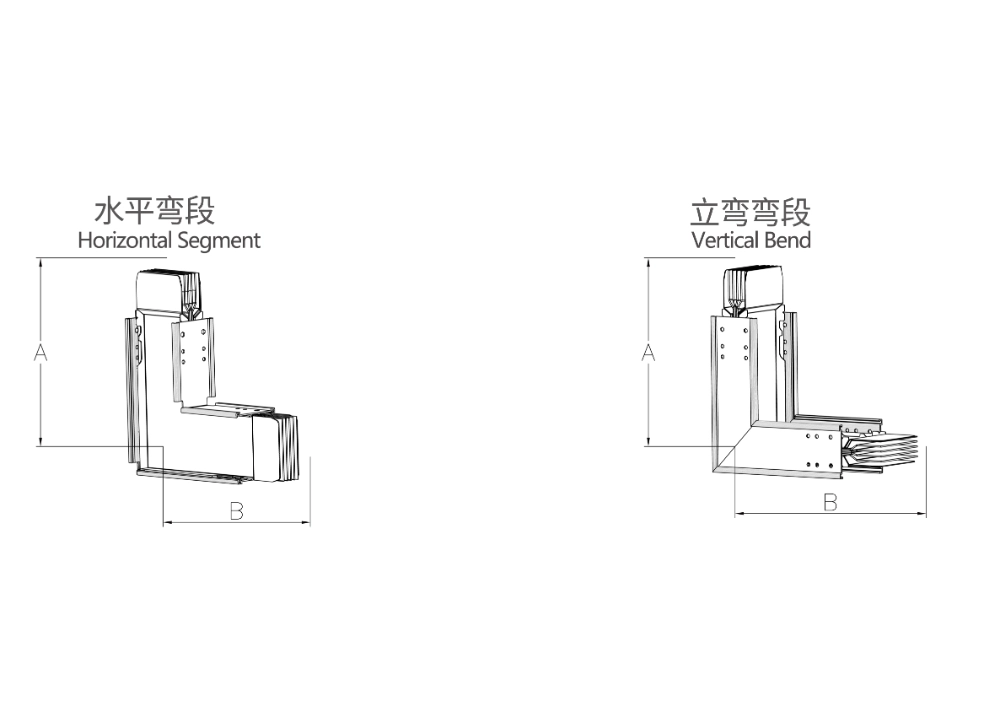

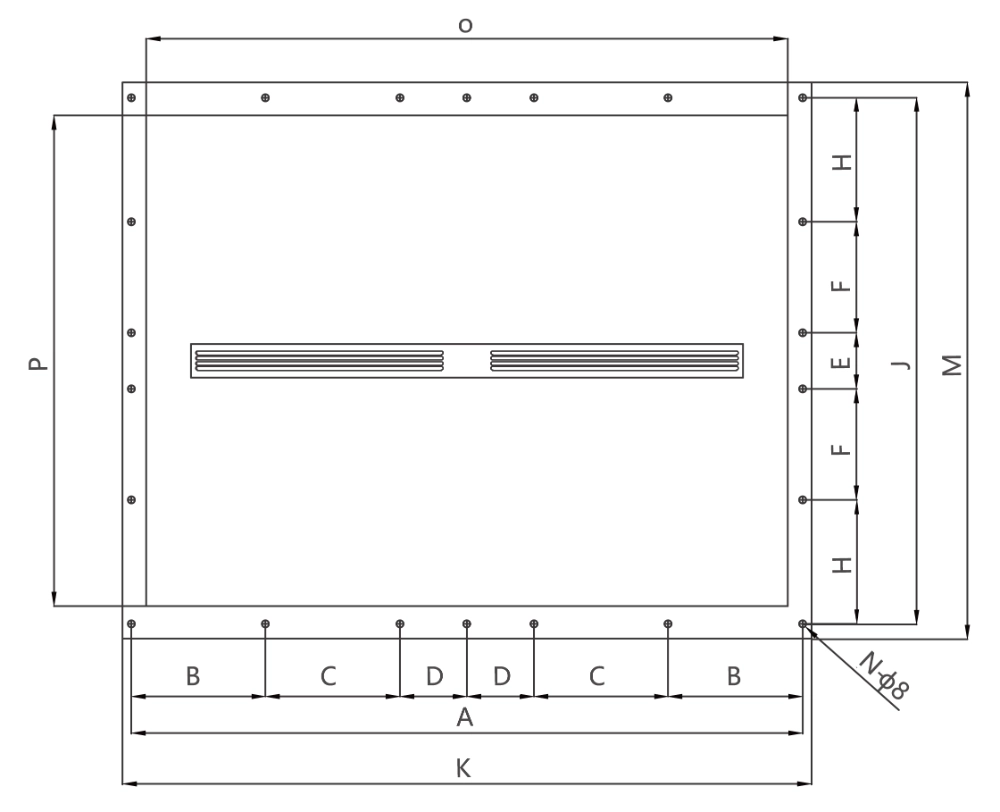

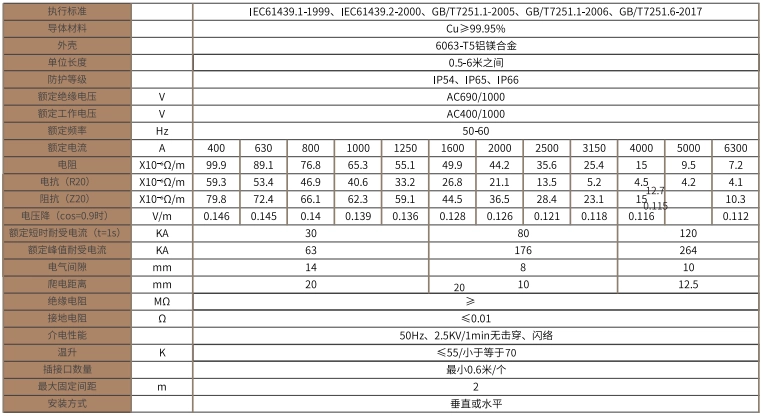

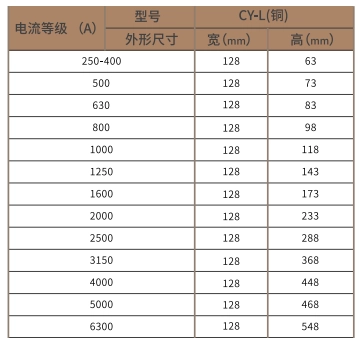

Item	Unit	Parameter
Executive Standard	-	IEC61439.1-1999、IEC61439.2-2000、GB/T7251.1-2005、GB/T7251.1-2006、GB/T7251.6-2017
Conductor Material	-	Cu≥99.95%
Enclosure	-	6063-T5 aluminum-magnesium alloy
Unit Length	-	Between 0.5-6 meters
Protection Class	-	IP54、IP65、IP66
Rated Insulation Voltage	V	AC690/1000
Rated Operating Voltage	V	AC400/1000
Rated Frequency	Hz	50-60
Rated Current	A	400	630	800	1000	1250	1600	2000	2500	3150	4000	5000	6300
Resistance	X10⁻⁶Ω/m	99.9	89.1	76.8	65.3	55.1	49.9	44.2	35.6	25.4	15	9.5	7.2
Reactance (R20)	X10⁻⁶Ω/m	59.3	53.4	46.9	40.6	33.2	26.8	21.1	13.5	5.2	4.5	4.2	4.1
Impedance (Z20)	X10⁻⁶Ω/m	79.8	72.4	66.1	62.3	59.1	44.5	36.5	28.4	23.1	15	12.7	10.3
Voltage Drop (at cos=0.9)	V/m	0.146	0.145	0.14	0.139	0.136	0.128	0.126	0.121	0.118	0.116	0.115	0.112
Rated Short-Time Withstand Current (t=1s)	KA	30					80				120
Rated Peak Withstand Current	KA	63					176				264
Clearance	mm	14					8				10
Creepage Distance	mm	20					10				12.5
Insulation Resistance	MΩ	≥20
Earth Resistance	Ω	≤0.01
Dielectric Property	-	50Hz, 2.5kV/1min, no breakdown or flashover
Temperature Rise	K	≤ 55 / ≤ 70
Number of Socket Interfaces	-	Min. 0.6 meters per unit
Maximum Fixing Spacing	m	2
Installation Method	-	Vertical or horizontal
