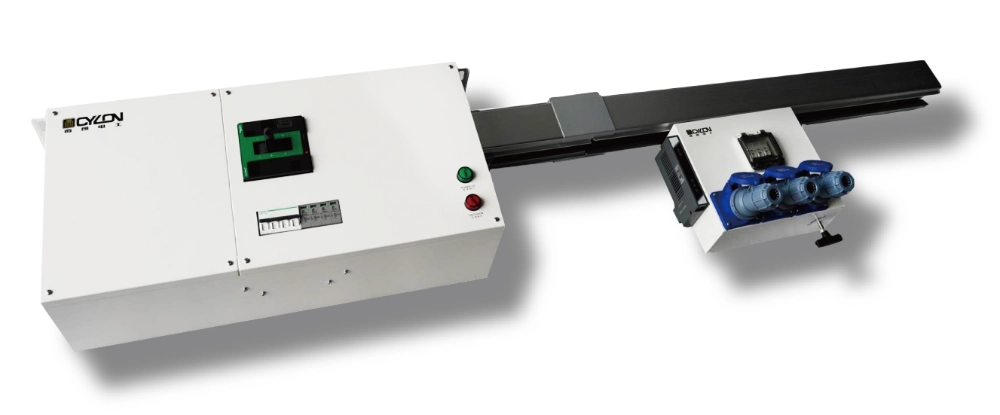

    CY-S Intelligent Busway System

    CY-S Intelligent Busway System adopts advanced busway technology. As an upgraded product for power distribution systems, it boasts enhanced electrical performance with improved conductive and insulating materials, enabling lower power loss, higher efficiency, and stable operation even in harsh environments. Integrated with an advanced IoT – based 5 – layer intelligent monitoring platform, it realizes real – time power consumption monitoring, leakage current detection, temperature and humidity monitoring, as well as fire detection. This ensures continuous system diagnosis, fault prevention, and optimized power usage, making it an ideal choice for modern industrial and commercial facilities with smarter, safer, and more efficient power distribution.

    Protection Rating: Up to 30 years
    Service Life:  IP54, IP65, IP66
    Conductive Materials:  99.95% Copper
    Custom Busway Solution:  Support

    SEND INQUIRY

    PRODUCT FEATURES

    • Non-Invasive Full-Length Temperature Monitoring

      The system continuously measures temperatures along the entire busway without affecting its structure or operation, ensuring safe and uninterrupted power delivery.

    • Real-Time Data Tracking and Visualization

      Temperature distribution curves and key point monitoring allow instant insight into operational conditions, enabling proactive response to potential issues.

    26

    Industry Experience

    • One-Year Historical Data Storage

      All measurements and electrical parameters are stored for up to a year, supporting reporting, trend analysis, and operational verification.

    • Smart Energy Management and Digital O&M

      Integrated meters and communication switches, combined with backend software, allow real-time monitoring, energy analysis, fault detection, and predictive maintenance—helping factories, transit systems, and large facilities run efficiently and safely.

    PRODUCT SPECTIFICATIONS

    • Parameters
    • Product Specification
    Parameter overview CY-Smart Duct Series Smart Busway
    Model GBS516、GBS525、GBS540、GBS560
    Phase 3P + N + PE

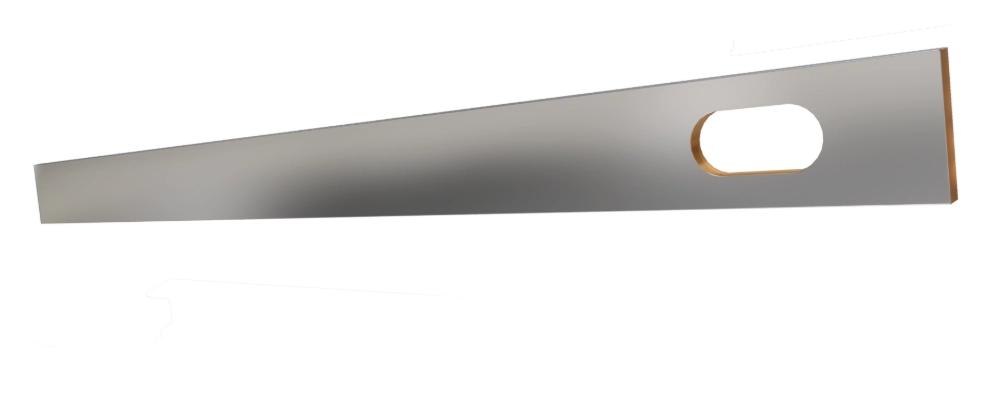

    Conductor T2 electrolytic copper, conductivity ≥ 97%, purity ≥ 99.95%
    Rating voltage 450V
    Insulation DMC, SMC, nylon 66, PC
    Rated insulation voltage 690V

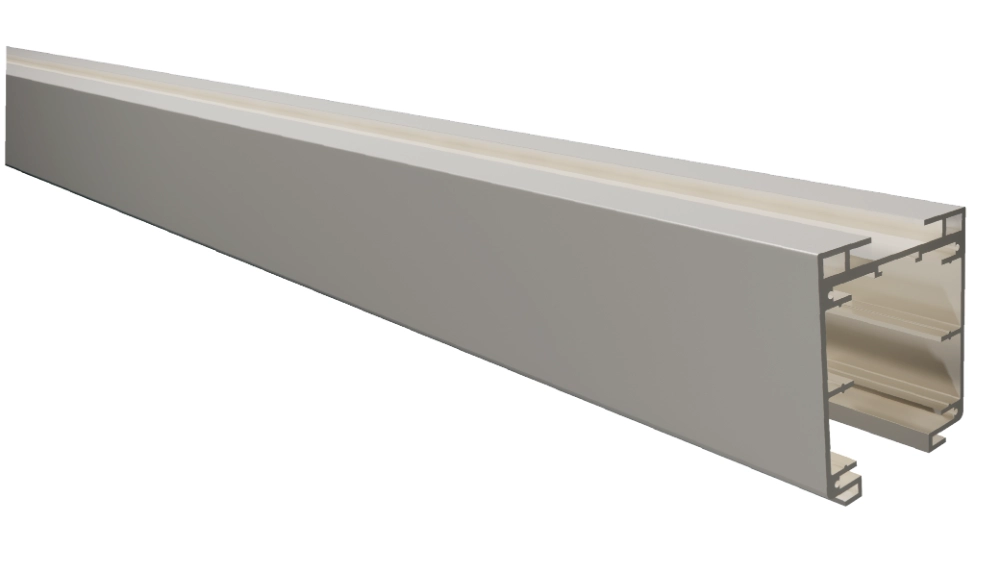

    shell material Aluminum - magnesium alloy
    Rated frequency 50/60 Hz
    Protection IP44/IP40
    Rated current per phase 160A、250A、400A、630A
    Neutral line rated current 160A、250A、400A、630A
    Rated peak short - circuit current Ipk 17KA、17kA、17kA、40kA
    Rated short - time withstand current Icw 10KA、10KA、10KA、20KA
    Shell size L*W (cm) 14.8cm x 9.3cm & 18.6cm x 9.3cm
    Reference weight per meter (kg/m) 8kg、10kg、14kg、20kg
    Support rod spacing (m) 1.5m、1.5m、1.5m、1.5m

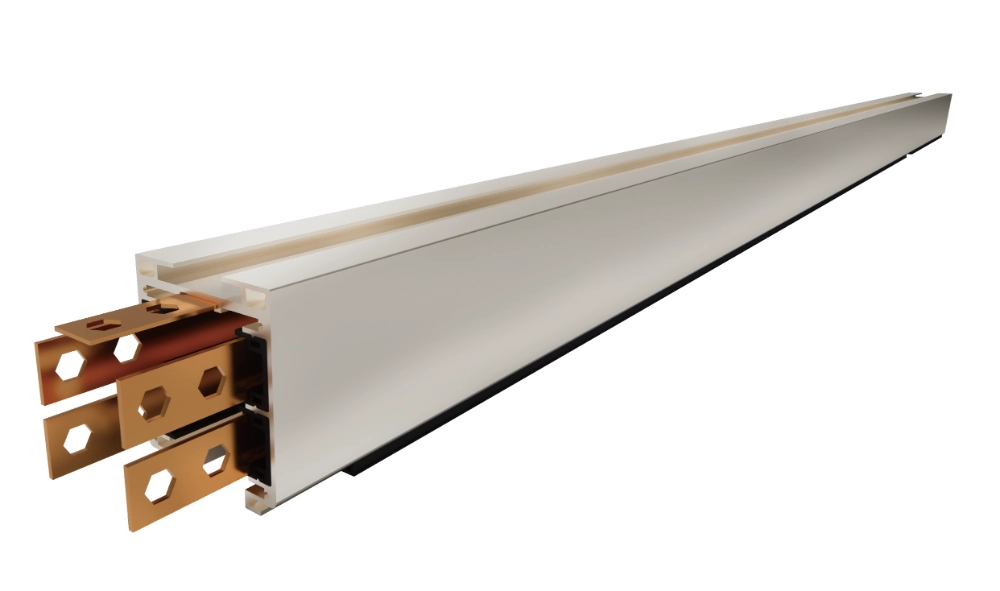

    Busway length (m) 3m / 2m / 1.5m / 1m
    Protective grounding The shell is grounded or a separate isolated ground wire
    Communication function customization
    shell color silver
    design standards IEC60439.1(2)、GB7251.1(2)
    Intelligent management meter introduction Basic busway   Residual current monitoring   Redundant power supply

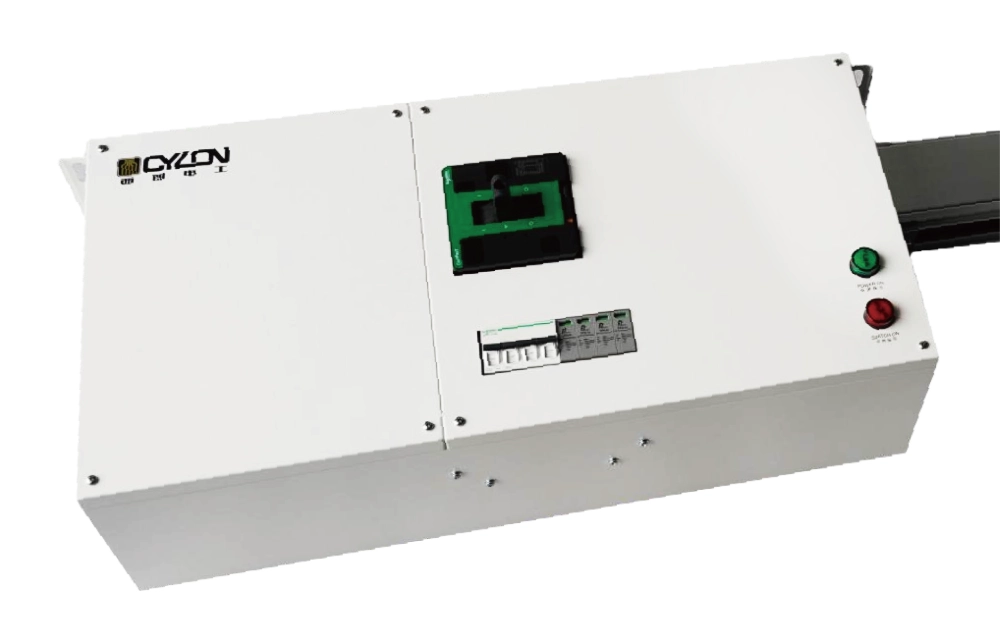

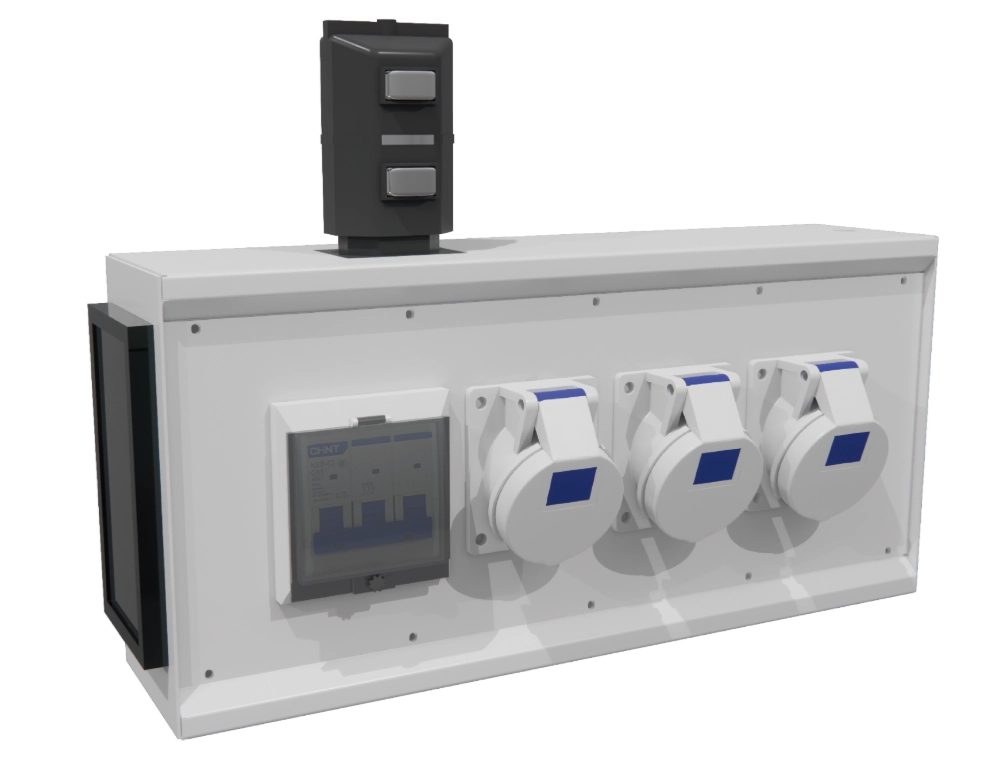

    Power feed Plug-in unit Power feed Plug-in unit Power feed Plug-in unit
    GBS540-Q10 GBC540-Q311 G516-Q2 G516-Q1 GBS540-Q48 GBS540-Q49
    Powered - Measuring Line Supply √ √ √ √ √ √
    Powered - Auxiliary power supply √ √ √ √ √ √
    Accuracy - Voltage 0.50% 0.50% 0.50% 0.50% 0.50% 0.50%
    Accuracy - Current 0.50% 0.50% 0.50% 0.50% 0.50% 0.50%
    Accuracy - Active power 1% 1% 1% 1% 0.5S% 1%
    Accuracy - Reactive power 2% 2% 2% 2% 2% 2%
    Accuracy - Power factor ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
    Accuracy - Frequency ±0.02Hz ±0.02Hz ±0.02Hz ±0.02Hz ±0.02Hz ±0.02Hz
    Accuracy - Temperature ±2℃ ±2℃ ±2℃ ±2℃ ±2℃ ±2℃
    Accuracy - Residual current     1% 1%
    Power Quality - Harmonic content √ √ √ √ √ √
    Power Quality - Imbalance rate √ √ √ √ √ √
    Electricity Statistics - Demand √ √ √ √ √ √
    Electricity Statistics - Maximum value √ √ √ √ √ √
    Electricity Statistics - Under/over voltage √ √ √ √ √ √
    Electricity Statistics - Loss of pressure √ √ √ √ √ √
    Electricity Statistics - Out of phase √ √     √ √
    Electricity Statistics - Overcurrent √ √     √ √
    Electricity Statistics - Loss of flow √ √     √ √
    Electricity Statistics - Cut off current √ √     √ √
    Real-time alarm - Overload √ √     √ √
    Real-time alarm - The lower limit of the power factor √ √     √ √
    Real-time alarm - Frequency limit   √     √ √
    Real-time alarm - Temperature limit √ √ √ √ √ √
    Real-time alarm - Voltage/current imbalance     √ √
    Real-time alarm - The leakage current exceeds the upper limit     √ √
    Real-time alarm - DI √     √ √ √
    Real-time alarm - Switch status     √ √
    Real-time alarm - Trip state       √

    PRODUCT APPLICATION

    • Industrial Manufacturing
      Our busway solutions provide efficient and reliable power support for large industrial plants, ensuring uninterrupted operation of heavy machinery and production lines 24/7.
    • Medical & Educational Facilities
      Our busways ensure safe and reliable power distribution in critical facilities like hospitals and schools, supporting the stable operation of essential equipment.

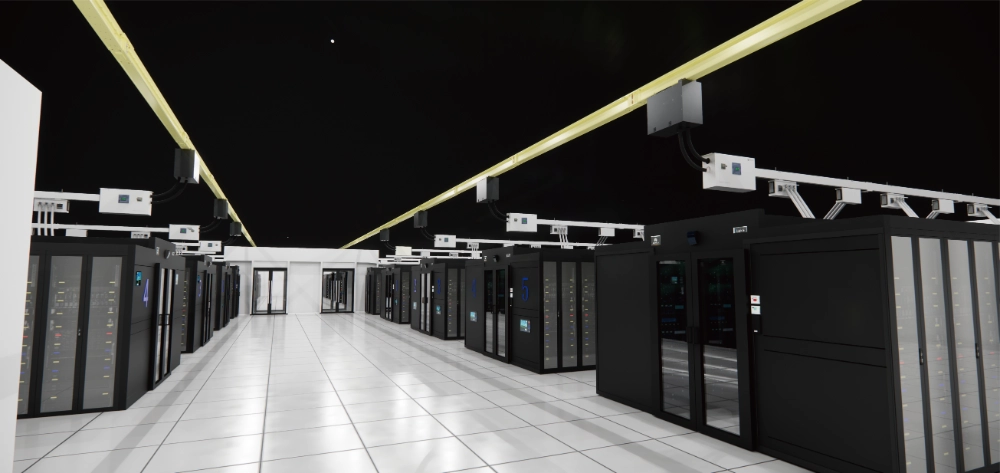

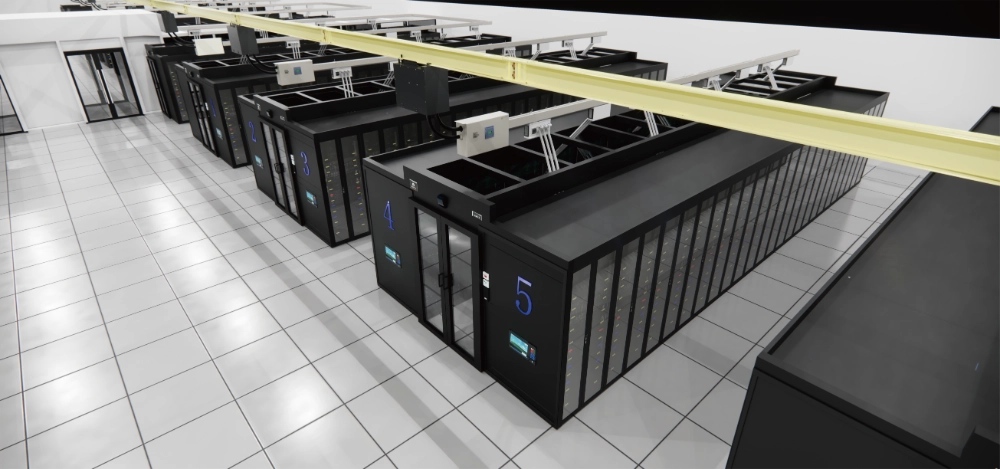

    • Data Centers
      Our busways offer efficient power solutions for data centers, meeting high load demands and ensuring the efficiency and stability of data transmission and processing.
    • Commercial Buildings
      Our busways offer flexible power distribution in commercial buildings, meeting the needs of various office spaces and equipment, ensuring efficient and safe power supply.
    • Super High-Rise Buildings
      Our busways provide reliable power supply for super high-rise buildings, supporting multiple power needs across different floors and ensuring stable power transmission.
    • Transportation Infrastructure
      Our busways offer efficient power distribution solutions for transportation infrastructure, ensuring the stable operation of facilities like airports and subways.

    Why Choose Cylon Busway

    • Lightweight Aluminium, High Conductivity

      Crafted with premium-grade aluminium conductors and treated with a full-length tin-plated finish, the system achieves reliable current transmission while maintaining excellent conductivity. The lightweight aluminium design reduces overall installation load, provides strong resistance to oxidation, and ensures long-term durability with lower energy loss.

    • Outstanding Insulation Reliability

      Insulated with DuPont polyester film (Class B, 130 °C) and reinforced with black adhesive insulation at the terminals (Class F, 155 °C), the busway ensures superior electrical protection. These halogen-free, eco-friendly materials deliver safer, more dependable performance in demanding applications.

    • Sealed Structure for Maximum Protection

      Side panels are integrally fabricated and tightly sealed, creating a fully enclosed enclosure. This robust design effectively blocks out dust and moisture, achieving IP65 protection, while overcoming the vulnerabilities of conventional jointed assemblies.
