Busways are connected using specialized modular Joint Blocks (or Joint Paks). The connection process involves meticulously cleaning the conductor terminals to minimize contact resistance, aligning the sections, and securing the joint block using torque-indicating bolts. This ensures optimal, uniform clamping pressure, creating a highly stable and safe electrical pathway without loosening over time.
Connecting busway sections is a precision engineering process that ensures the safe and continuous transmission of high-current power. Here is how modern, high-quality busway systems (like those from Cylon) are connected:

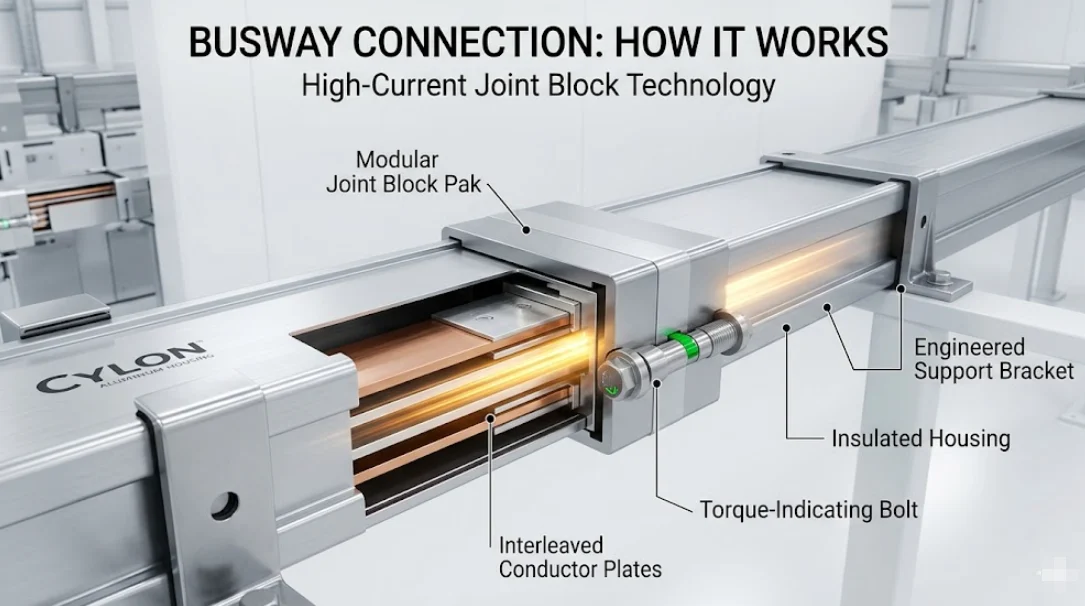

- 1. The Modular Joint Block Design: Instead of simple overlapping copper plates, modern busways utilize a specialized “Joint Block.” This component contains interleaved conductive plates that perfectly match the busway’s internal conductors, ensuring maximum surface area contact.
- 2. Surface Preparation & Low Contact Resistance: Before connection, the terminal ends must be rigorously cleaned to remove any dust, oil, or oxidation. Maintaining a pristine surface is critical to minimizing contact resistance, which prevents the joint from overheating under heavy electrical loads.
- 3. Precision Fastening (Torque Bolts): The joint is secured using specialized torque-indicating bolts. Installers tighten these bolts until the designated torque is reached (often indicated by a break-away outer bolt head). This guarantees the exact clamping force is applied—neither too loose (which causes arcing) nor too tight (which can damage the insulation).
- 4. Vibration and Seismic Resistance: For installations in demanding environments, such as transit hubs or manufacturing plants with heavy machinery vibration, the connections incorporate Belleville washers (conical spring washers). These washers maintain constant pressure on the joint, absorbing vibrations and ensuring the connection remains perfectly secure over its lifespan.
