Based on international engineering standards, busways are primarily classified into three main types according to their insulation methods: Air-Insulated Busways, Compact (Solid-Insulated) Busways, and Cast Resin Busways. The choice of insulation material—ranging from air gaps and polyester films to solid epoxy resins—directly determines the system's voltage capacity, physical footprint, and environmental protection (IP rating).

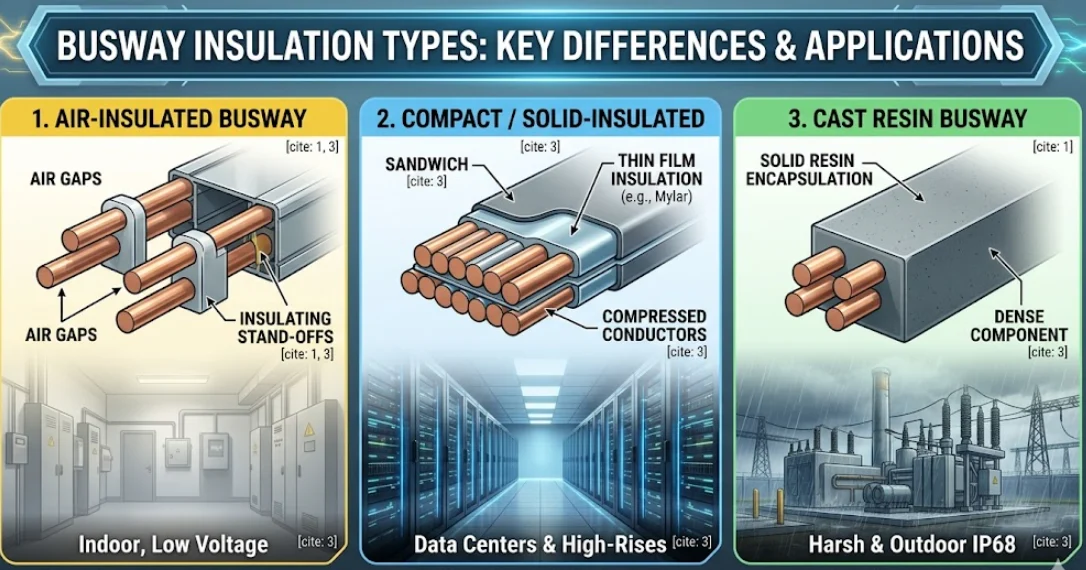

Understanding the insulation type is critical for selecting the right power distribution system for specific environmental conditions. Here are the three primary categories:
- 1. Air-Insulated Busways (Air Gap Insulation): This traditional type relies on physical air gaps and insulating stand-offs between bare conductors.
- Advantages: Simple structure, highly cost-effective, and easy to maintain.
- Disadvantages: Larger physical footprint and lower Ingress Protection (IP) ratings. They are generally restricted to indoor, low-voltage applications with controlled environments.
- 2. Compact / Solid-Insulated Busways (e.g., Heat-shrink PET, Mylar, Epoxy Coating): Also known as sandwich-type busways, the conductors are individually wrapped in solid insulating materials (such as heat-shrink tubing or Class B/F/H polyester films) and tightly compressed.
- Advantages: Exceptional space-saving design, very low impedance (reducing voltage drop), and high ampacity. This is the standard backbone for data centers and high-rise buildings.
- Disadvantages: While highly efficient, extreme high-temperature environments over long periods can accelerate the aging of certain film insulations if not properly ventilated.
- 3. Cast Resin Busways (e.g., Epoxy, Polyurethane, Silicone Encapsulation): For extreme environments, the conductors are completely encapsulated in a poured polymer compound (like epoxy resin or polyurethane).
- Advantages: Offers the highest level of protection (up to IP68). They are waterproof, chemical-resistant, and provide excellent fire resistance, making them ideal for outdoor substations or harsh industrial plants.
- Disadvantages: They are significantly heavier, more expensive, and, as noted in proper engineering protocols, require specialized heavy-duty procedures for disassembly or modification.
