Insulated busbars (or bus ducts) are a high-efficiency power distribution system consisting of closely packed copper or aluminum conductors encased in advanced insulation and completely sealed within a protective metal casing. Designed for the safe and efficient transmission of high-current power in commercial and industrial facilities, they offer superior protection, modular flexibility, and a longer service life compared to traditional heavy-duty cables.
Insulated busways are considered the backbone of modern electrical infrastructure. Here is a detailed breakdown of their structure, applications, and core requirements:

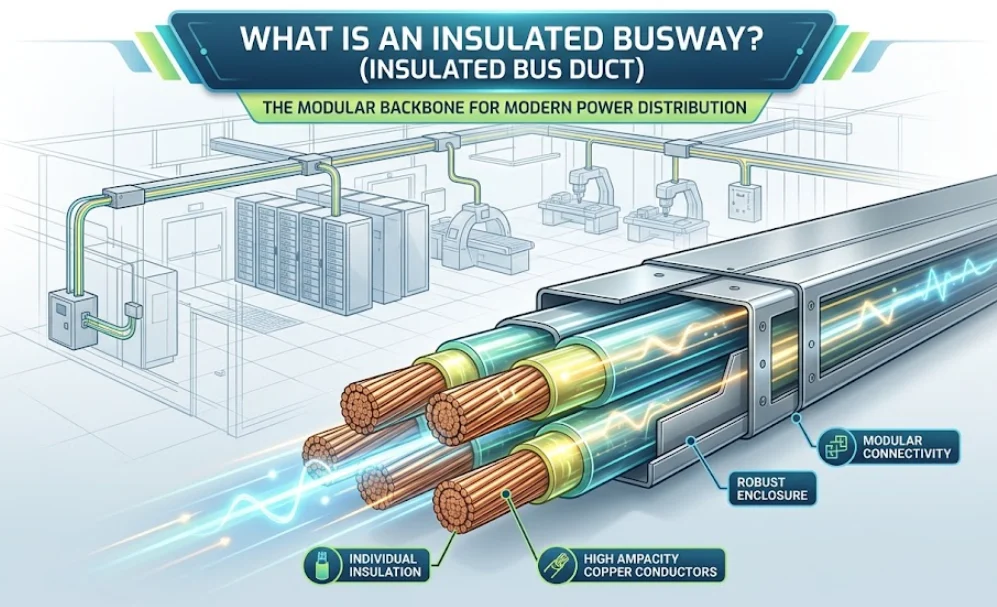

- Structure and Functionality: An insulated busway replaces unwieldy cable bundles with neatly arranged, individually insulated conductors housed in a durable casing (typically extruded aluminum or steel). This robust enclosure shields the internal conductors from external environmental hazards such as dust, moisture, and mechanical impact. Furthermore, the modular design features strategically placed openings, allowing facility managers to easily connect tap-off boxes and distribute power to different locations along the busway’s path.
- Key Application Scenarios: While not used for cross-country power grids, insulated busways are the premier choice for heavy-duty power routing within large-scale complexes. They are extensively deployed in hyperscale data centers, high-rise commercial buildings, automated manufacturing plants, and hospital networks to efficiently distribute power from the main switchgear directly to the terminal equipment.
- Core Engineering Requirements: High-quality insulated busway systems, such as those manufactured by Cylon, must meet rigorous performance standards. Key requirements include the following:
- Excellent Dielectric Strength: Premium insulation to prevent electrical faults.
- High Ampacity: The ability to safely carry massive currents and withstand high voltages without overheating.
- Durability & Reliability: A long operational lifespan with maintenance-free performance.
- Modularity: Easy and rapid installation, allowing for seamless future expansions or layout reconfigurations.
